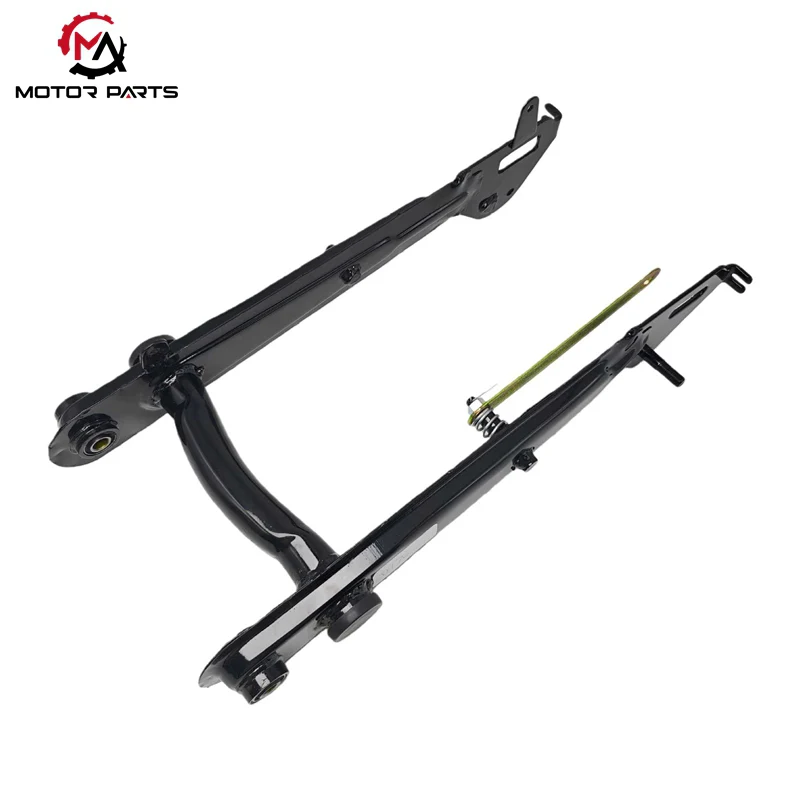

Why Does My JH70 Motorcycle Rear Fork Bracket Make Noise After Installation
2026-07-21
If you have just installed a new JH70 Motorcycle Rear Fork Bracket and hear unusual clunks, squeaks, or rattles, you are not alone. This is one of the most common post-maintenance complaints among JH70 owners. At Max Trading, we have handled hundreds of rear suspension inquiries, and we can tell you that most noise issues are not due to defective parts but rather to installation errors, missing components, or incorrect torque application. Understanding the root cause saves you time, money, and prevents premature wear on your swingarm pivot system.
Common Noise Types and Their Immediate Causes
Before diving into solutions, identify the sound. Each noise points to a different problem area.
| Noise Type | Likely Source | Urgency Level |
|---|---|---|
| Metallic clunk | Loose pivot bolt or worn bearing races | High – stop riding |
| High-pitched squeak | Rubber bushing dry friction or missing grease | Medium – address soon |
| Rattling/clicking | Dust seal misalignment or loose washer stack | Low – but inspect |
| Deep grinding | Bearing collapse or bracket deformation | Critical – immediate replacement |
Top 5 Reasons for Post-Installation Noise in the JH70 Rear Fork Bracket
1. Incorrect Torque on the Pivot Bolt
The JH70 Motorcycle Rear Fork Bracket pivot bolt requires a specific tightening sequence. Over-tightening binds the bearings; under-tightening allows axial play. Both produce noise. The factory spec is 40–45 Nm for the main pivot nut, but many DIY mechanics use impact wrenches blindly.
2. Missing or Damaged Thrust Washers
The bracket assembly includes two thin thrust washers between the bearing races and the swingarm bushings. If these are left out or installed upside down, metal-to-metal contact occurs within 50 km of riding. Max Trading always recommends replacing the entire washer set when changing the bracket.
3. Inadequate Grease Distribution
The JH70 uses needle bearings that rely on high-pressure lithium grease. Most aftermarket brackets come with minimal factory grease. Without packing the bearing cavity properly, dry rollers create a squeaking rhythm that matches wheel rotation.
4. Misaligned Dust Seals
The rubber dust seals must sit flush against the bearing outer race. If they are cocked during installation, they rub against the pivot collar and produce a cyclic chirping sound, especially under braking or acceleration.
5. Bent Bracket from Shipping or Storage
Even a minor warp (less than 0.5 mm) in the JH70 Motorcycle Rear Fork Bracket will cause uneven bearing load. This generates a low-frequency thump each time the rear suspension compresses. Always check the bracket on a flat surface before installation.
Step-by-Step Diagnostic Checklist
Follow this sequence to isolate the noise source:
-
Step 1 – Place the bike on a center stand and rock the rear wheel side-to-side. Any play > 2 mm indicates a loose pivot.
-
Step 2 – Rotate the rear wheel slowly by hand while listening near the bracket. If noise appears only under load, it is bearing-related.
-
Step 3 – Remove the bracket and inspect the pivot collar for scoring marks. Shiny rings indicate missing washers.
-
Step 4 – Re-grease with a lithium-complex grease and re-torque in three stages (20 Nm → 35 Nm → 45 Nm).
-
Step 5 – Test-ride over a speed bump. If the noise changes pitch, the dust seals are the culprit.
Frequently Asked Questions (FAQ) About the JH70 Motorcycle Rear Fork Bracket
Q1: Can I ride my JH70 temporarily if the rear fork bracket makes a clunking noise?
A1: No. A clunking sound from the JH70 Motorcycle Rear Fork Bracket almost always means the pivot bolt has loosened or a bearing race has fractured. Riding even 1–2 km can ovalize the swingarm pivot hole, turning a $30 bracket replacement into a $200 swingarm replacement. We at Max Trading strongly advise parking the bike immediately, removing the bracket, and checking the bolt torque with a proper torque wrench. If the bolt moves freely with your fingers, the threads may be stripped – replace both the bolt and the bracket as a set.
Q2: How often should I replace the bearings inside the JH70 Motorcycle Rear Fork Bracket?
A2: Under normal road conditions (no off-road, no heavy pillion), the needle bearings in the JH70 Motorcycle Rear Fork Bracket last between 12,000 and 15,000 km. However, if you ride in rain or frequently wash your bike with high-pressure water, moisture ingress cuts that life to 6,000–8,000 km. The telltale sign is a rough, grainy feeling when you pivot the bracket by hand after removal. Max Trading recommends a bearing inspection every chain adjustment (approximately every 1,000 km). Replace bearings in pairs – never replace just one side, as uneven wear will create a twisting force that damages the bracket housing.
Q3: Will using a non-OEM grease cause premature failure of my JH70 Motorcycle Rear Fork Bracket?
A3: Yes, absolutely. The JH70 Motorcycle Rear Fork Bracket uses a caged needle bearing design that requires a grease with an NLGI grade of #2 and a dropping point above 260°C. Many general-purpose automotive greases are too thin; they migrate away from the rollers under centrifugal force, leaving metal-on-metal contact within 200 km. Conversely, marine-grade greases are too thick and block the grease flow channels. Max Trading exclusively recommends a lithium-complex EP (extreme pressure) grease with molybdenum disulfide for JH70 applications. If you have already used a different grease, disassemble, clean every roller with kerosene, dry thoroughly, and re-pack with the correct type. Mixing grease chemistries (e.g., lithium with calcium) can cause separation and hardening – which is worse than using no grease at all.
Pro Tips from Max Trading’s Workshop
-
Always replace the cotter pin – even if it looks reusable. A stretched pin will not secure the castle nut, leading to gradual loosening over bumps.
-
Check the swingarm bushing inner diameter – if it exceeds 22.05 mm (standard is 22.00 mm), the bracket will rock microscopically and generate a high-frequency buzz at 50–60 km/h.
-
Use a thread locker (medium strength) on the pivot bolt threads, but only after cleaning them with brake cleaner. Oil residue reduces locking effectiveness by 70%.
When to Replace vs. Repair
| Condition | Action | Estimated Cost (USD) |
|---|---|---|
| Squeak only – no play | Clean, re-grease, re-torque | $5–$10 (grease + labor) |
| Metallic clunk – visible scoring | Replace bearing set + washers | $25–$40 |
| Bent bracket (visible warp) | Replace entire JH70 Motorcycle Rear Fork Bracket | $45–$70 (OEM-grade) |
| Stripped pivot threads on frame | Frame repair or helicoil – plus new bracket | $80–$150 |
Final Verdict
Ninety percent of noise complaints after a new JH70 Motorcycle Rear Fork Bracket installation trace back to torque errors, dry bearings, or missing thrust washers – not to part defects. By following the diagnostic table and torque sequence above, you can resolve most issues in under an hour. For persistent noise, measure the bracket’s parallelism: place two identical spacers between the bracket and swingarm ears; if the gap differs by more than 0.3 mm, the bracket itself is out of spec and should be returned.
