How Does a Damaged Commutator End Bracket Affect Motor Performance
2026-03-12
Electric motors rely on precision components to function efficiently, and the commutator end bracket is critical among them. When this component becomes damaged, it triggers a cascade of performance issues that can compromise your entire system. At United, we understand that identifying these problems early can save your equipment from costly downtime and extensive repairs.

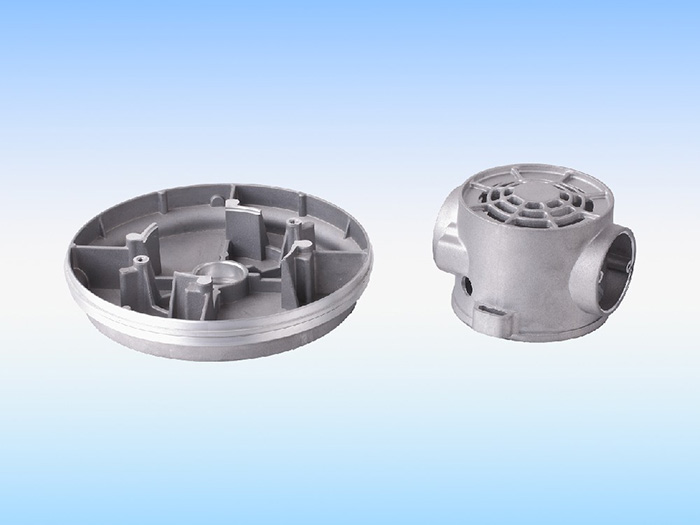

The Critical Role of the Commutator End Bracket
The commutator end bracket serves as the structural support for the commutator assembly while maintaining precise brush alignment. It also houses the bearings that allow the armature to rotate smoothly. When this bracket is compromised, every aspect of motor operation suffers.
Common Performance Issues Caused by Damage
| Symptom | Cause Related to Damaged Bracket | Consequence |
|---|---|---|
| Excessive sparking | Misalignment of brush holders | Rapid brush wear, commutator damage |
| Vibration | Bearing housing distortion | Noise, reduced bearing life |
| Overheating | Increased friction from misalignment | Insulation breakdown, motor failure |
| Reduced power output | Poor electrical contact | Inefficient operation, torque loss |
Primary Failure Mechanisms
When a commutator end bracket becomes damaged, several interconnected problems emerge:
-
Brush holder misalignment: Even minor distortion changes the brush angle, causing uneven wear and poor contact with the commutator surface
-
Bearing fit issues: Cracks or deformation in the bearing pocket create improper preload, leading to vibration and premature bearing failure
-
Structural instability: The armature may shift under load, changing critical air gaps and magnetic circuit efficiency
-
Electrical path degradation: Corrosion or damage to mounting surfaces increases resistance, reducing power delivery
Long-Term Consequences
Ignoring a damaged commutator end bracket accelerates deterioration of other components. Brush fragments from uneven wear contaminate the motor interior, while sustained vibration loosens connections and fatigues windings. The result is cascading failure that often requires complete motor replacement rather than simple bracket repair.
United recommends regular inspection of this critical component during routine maintenance. Our engineering team has documented numerous cases where early bracket replacement prevented catastrophic motor failure and extended equipment life by 300% or more.
Commutator End Bracket FAQ
Q: How can I tell if my commutator end bracket is damaged before complete failure occurs?
A: Early warning signs include visible rust or corrosion on the bracket surface, particularly near bearing pockets and mounting points. You may notice increased sparking at the brushes during startup or load changes, which indicates misalignment. Vibration measurements showing increasing amplitude, especially at frequencies related to brush passage, suggest bracket distortion. Regular thermal imaging can also reveal hot spots where friction from misalignment generates excess heat. United recommends quarterly inspections using these methods for critical motors.
Q: What causes commutator end bracket damage in normal operation?
A: Thermal cycling is the primary culprit. Repeated heating and cooling cycles during motor operation create expansion and contraction stresses that can eventually crack cast brackets or distort fabricated ones. Mechanical stress from improper belt tension, misaligned couplings, or impact during maintenance also contributes significantly. Corrosion from humid environments or chemical exposure weakens the bracket structure over time. Additionally, bearing failures that go unnoticed often damage the bracket pocket as the spinning outer race wears away the mounting surface.
Q: Can a damaged commutator end bracket be repaired, or must it be replaced?
A: Repair feasibility depends on the damage type and bracket material. Minor distortion in steel brackets can sometimes be corrected through precision machining, provided sufficient material remains. Cast aluminum brackets with cracks typically require replacement, as welding introduces heat distortion and weakens the surrounding material. Corrosion damage near critical mounting surfaces usually mandates replacement due to compromised dimensional accuracy. United offers professional assessment services to determine the most cost-effective solution for your specific situation, balancing repair costs against long-term reliability.
Ensure Your Motors Perform at Their Best
Don't let a damaged commutator end bracket compromise your equipment reliability. United provides premium replacement brackets engineered to exceed OEM specifications, along with expert technical support to ensure proper installation and alignment.
Contact us today for a free consultation and bracket inspection guide. Our specialists will help you develop a maintenance strategy that prevents unexpected failures and extends your motor life.
